Top News!

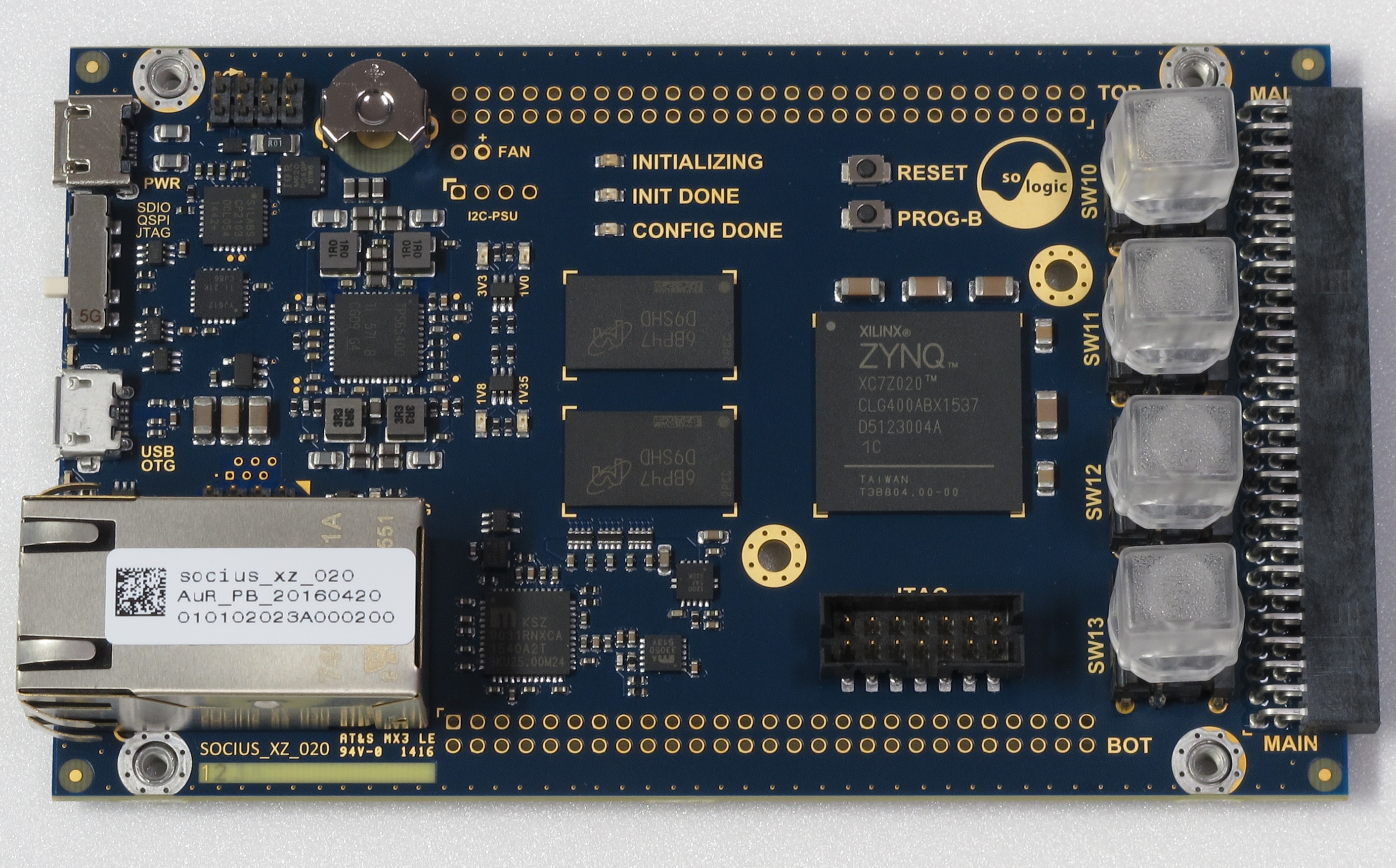

So-logic team developed a new SOZIUS development platform!



A sozius development platform is a small, portable electronic device that can easily be powered from a USB port, USB charger, Power Over Ethernet or a battery pack. You can easily develop software and/or digital hardware for it, because it uses an FPGA with an embedded processors. For many applications, 90% of the overall design is fixed and only 10% makes the difference. Sozius delivers already a well designed board and should help you to focus on the specifics of your project and can be easily extended to meet your needs. The main system with many interfaces and Linux is already preconfigured and ready for use. It should be easy to carry around for training and teaching.


With three expansion slots it is easily expandable to make it useful for many different kinds of applications.


”Make it as simple as possible, but not simpler.” (Albert Einstein)


featured image
featured image
featured image
featured image

Features:

  • You can select between many different Kits that come already with additional modules, firmware and bitstream

  • Buy the sozius.xxx.yyy kit which is basic system without any boards and buy additional modules or develop them by ourself

  • Download the necessary images (include FSBL, elf for PS and bit file PL from our website www.so-logic.net/sozius)

  • Develop your own Firmware

  • Develop your own FPGA in VHDL or Verilog

  • Develop your own module and plug it in your device


Standard Interfaces:

  • RJ45 with 1G for remote communication connected to PS

  • microUSB USB device/host for local communication to PS

  • microUSB Power Supply < 10W for the whole board, optional PoE, combined with debug UART for PS

  • microUSB JTAG for programming and debugging (Vivado Analyser and GNU Debugger)


List of available sub-modules for different use cases:

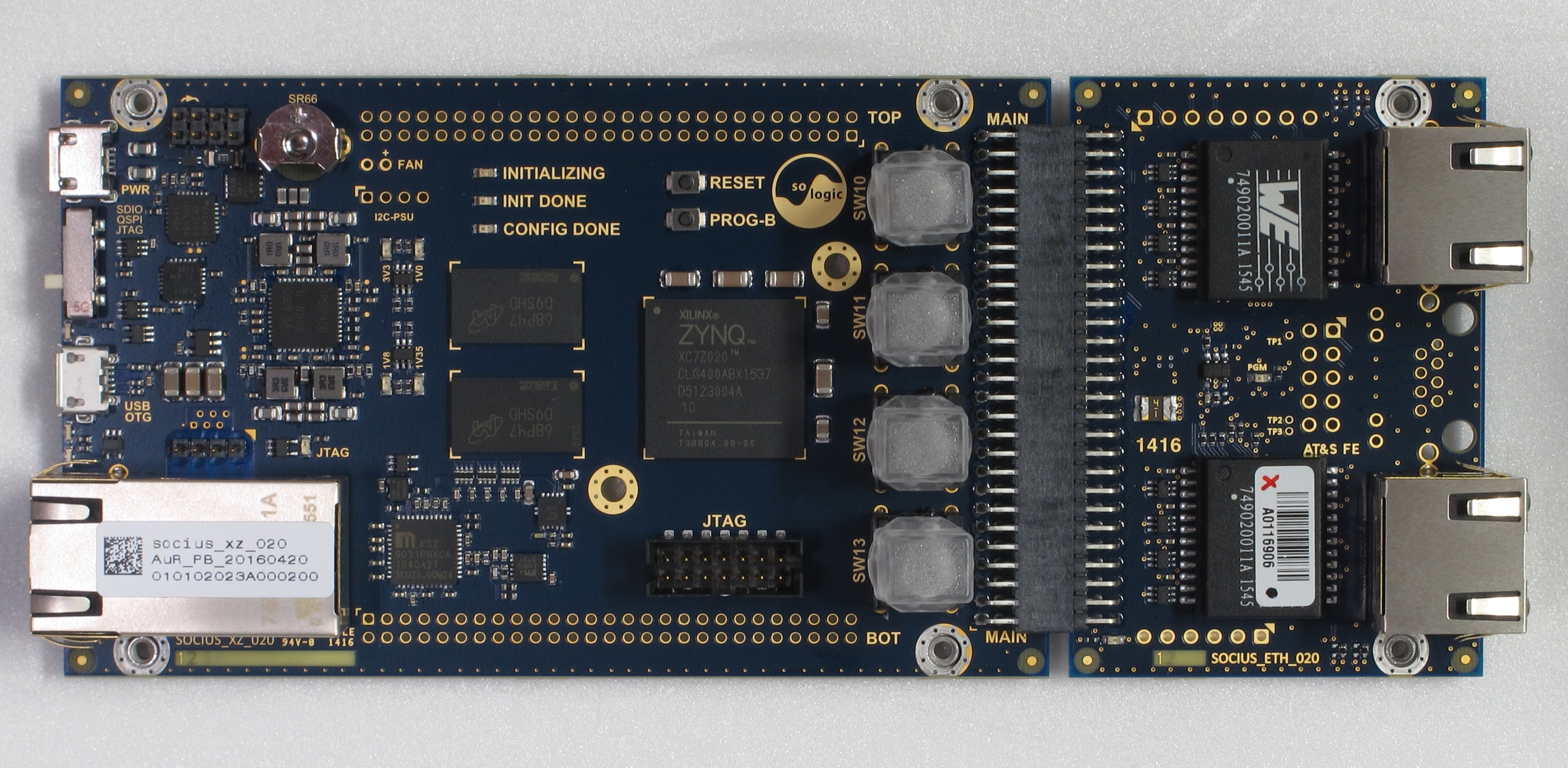

  • sozius.eth - Ethernet point to point personal encryption - 2 x RJ45 connected to PL, with key management


  • featured image

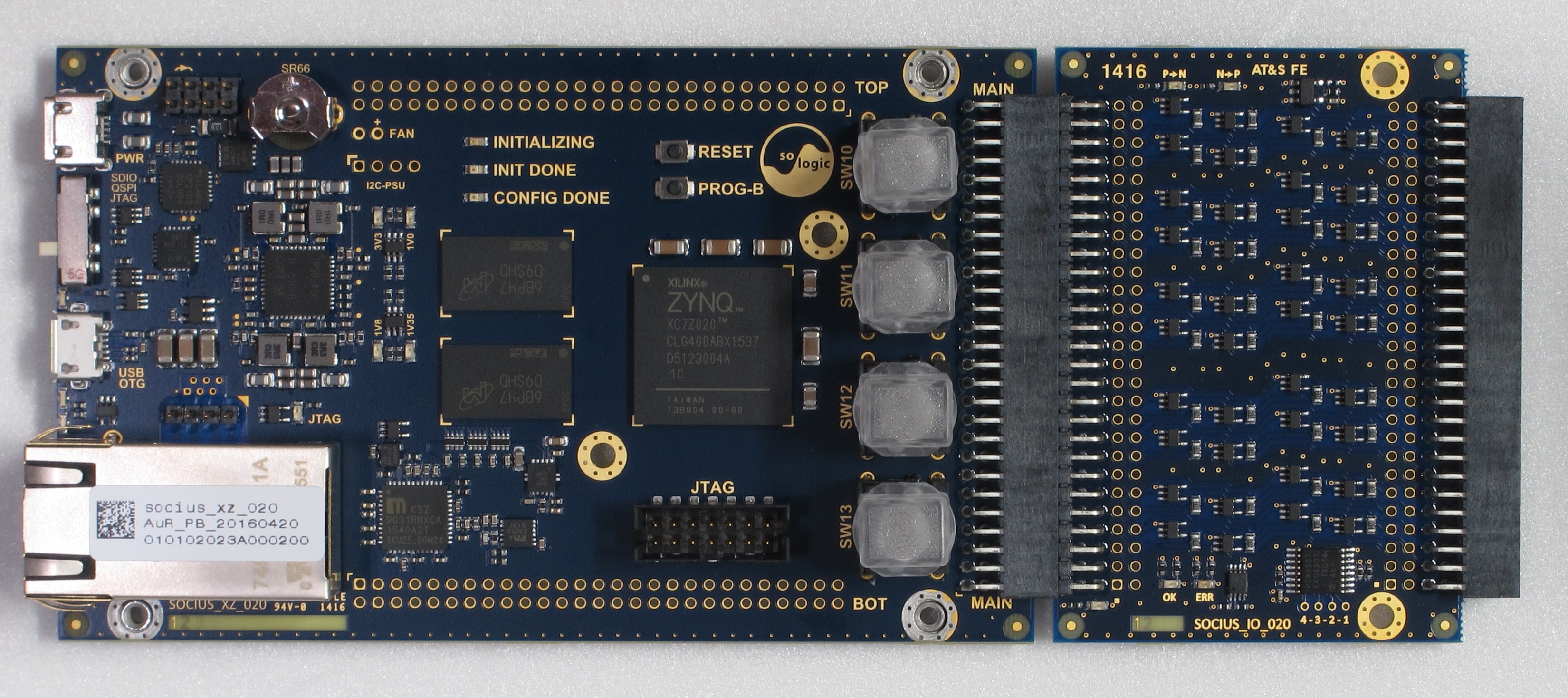

  • sozius.io - Enabling general purpose IO connectivity


  • featured image

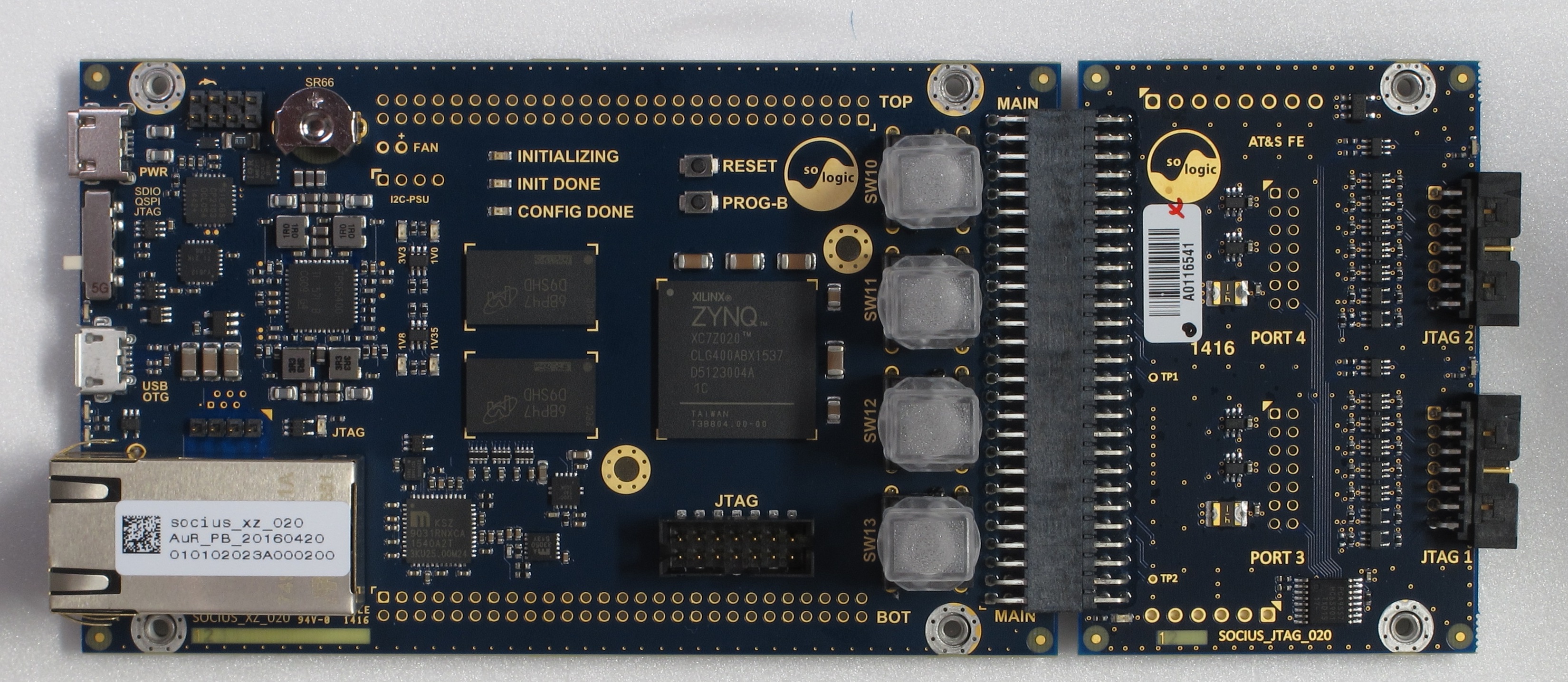

  • sozius.jtag - JTAG programmer with multiple JTAG ports - Ethernet Interface for different FPGAs vendors


  • featured image

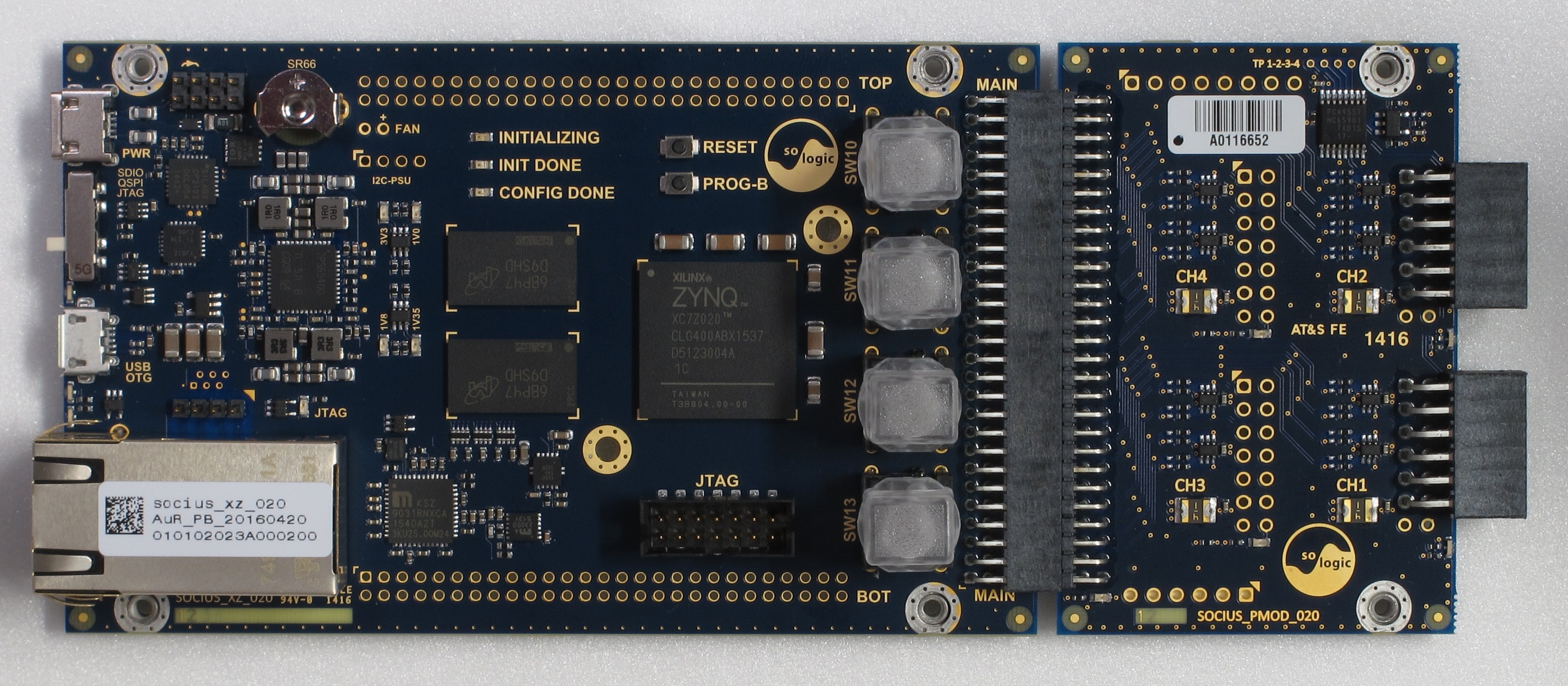

  • sozius.pmod - Adapter to use multiple PMODs - double PMODs 2 x 4 =8 => 4 PMODs


  • featured image

  • sozius.dev - Development Kit - demo board for education in schools and university, no sub modules included

  • sozius.sdr - Software Defined Radio - GNU Radio, Portable Spectrum Analyser, Vector Network Analyser

  • sozius.wifi - Ethernet point to point personal encryption - 1 x RJ45 and 1 x WIFI connected to PL

  • sozius.alab - Analog Scope 2 ch or 4 ch 1 GS/s - with ADC and/or DAC can use one, two or three soMod

  • sozius.dlab - Serial Protocol and Logic Analyser - Uart, I2C, OneWire, CAN, SPI, QSPI, Pattern Generator, Sync In and Sync Out

  • sozius.sense - Sensor and Control - Environmental Sensors temperature, humidity, GPS, IMU, Compass, Weather Station, like LabJack

  • sozius.robo - Remote Model Control - Motor Control, Sensor, Driver, Position Measurement

  • sozius.disp - Touch Screen Display 3” for User Interface - needs port a+C

  • sozius.fmc - Adapter for using FMC boards - Xilinx FMC-LPC Low Pin Count connector 72 User IO, we have 2 x 38 => 76 User IOs

  • sozius.audio - I2S, analog

  • sozius.video - Panel link and camera link,VGA, anlog

  • sozius.home - For home automation interfaces to HomeMatic, EnOcean

  • sozius.hwtest - For production testing of main board, simple loop backs for all IOs

Training News

So-logic company is Xilinx authorized training provider, offering all courses from Xilinx training catalogue.


Schedule for Training Courses in September and October 2016!

If you are interested to attending one of our courses, here is a list of upcoming training courses, offered by so-logic, in September and October 2016:


September:

  • 12.09. - 13.09.2016    Designing with the Xilinx 7 Series Families

  • 12.09. - 13.09.2016    Designing with the UltraScale Architecture

  • 14.09. - 16.09.2016    Embedded Open-Source Linux Development

  • 14.09. - 15.09.2016    Embedded Design with PetaLinux Tools

  • 19.09. - 20.09.2016    Embedded Systems Design

  • 19.09. - 20.09.2016    Zynq All Programmable SoC System Architecture

  • 19.09. - 20.09.2016    Embedded Systems Software Design

  • 21.09. - 21.09.2016    Advanced Features and Techniques of Embedded Systems Software Design

  • 21.09. - 22.09.2016    Advanced Features and Techniques of Embedded Systems Design

  • 26.09. - 28.09.2016    Designing with VHDL

  • 26.09. - 28.09.2016    Designing with Verilog

  • 29.09. - 30.09.2016    Designing with System Verilog

  • 29.09. - 30.09.2016    Verification with System Verilog

  • 29.09. - 30.09.2016    Advanced VHDL


October:

  • 03.10. - 03.10.2016    C-based HLS Coding for Software Designers

  • 03.10. - 03.10.2016    C-based HLS Coding for Hardware Designers

  • 04.10. - 05.10.2016    Simulink zur System- und Algorithmenmodellierung

  • 06.10. - 07.10.2016    MATLAB Programmiertechniken

  • 10.10. - 12.10.2016    Signal Integrity and Board Design for Xilinx FPGAs

  • 10.10. - 10.10.2016    PCIe Protocol Overview

  • 10.10. - 12.10.2016    Designing with Multi-Gigabit Serial I/O

  • 13.10. - 14.10.2016    How to Design a High-Speed Memory Interface

  • 13.10. - 14.10.2016    Designing an Integrated PCI Express System

  • 13.10. - 14.10.2016    Designing with Ethernet MAC Controllers

  • 17.10. - 19.10.2016    Vivado Design Suite Advanced XDC and Timing Analysis for ISE Software Users

  • 20.10. - 21.10.2016    Xilinx Partial Reconfiguration Tools & Techniques

  • 21.10. - 21.10.2016    UltraFast Design Methodology

  • 24.10. - 25.10.2016    Designing with the Xilinx 7 Series Families

  • 24.10. - 25.10.2016    Designing with the UltraScale Architecture

  • 26.10. - 27.10.2016    Embedded Design with PetaLinux Tools

  • 26.10. - 28.10.2016    Embedded Open-Source Linux Development

  • 31.10. - 01.11.2016    Embedded Systems Software Design

  • 31.10. - 01.11.2016    Embedded Systems Design

  • 31.10. - 01.11.2016     Zynq All Programmable SoC System Architecture


FPGA Tutorial News

So-logic company offers FPGA tutorials, documents made for beginners who are entering the FPGA world. We are trying to keep these tutorials updated with the latest software versions. Currently, so-logic offers the following tutorials:



All the tutorials are completely free of charge.

The latest tutorial versions, you can also find on the so-logic's Customers page.


So-logic Database News

So-logic FPGA Database is updated with the latest FPGA familis information!


In the FPGA Database you can find families and sub-families of manufacturers like Xilinx, Altera, Lattice, Atmel, Microsemi, Achronix, Cypress, QuickLogic, Tabula, Tier Logic and eASIC with their devices and majority of the data for each device.
